PaperBelt transfer system

Transfer system for continuous supply with paper cushions
  • Centralised pre-production of robust PaperJet® paper cushions
  • Automated transport of paper padding from the PaperJet® to different workstations
  • Sensor-controlled replenishment
  • Reduced system and handling costs
  • Space advantage: Centralised material store independent of packing station

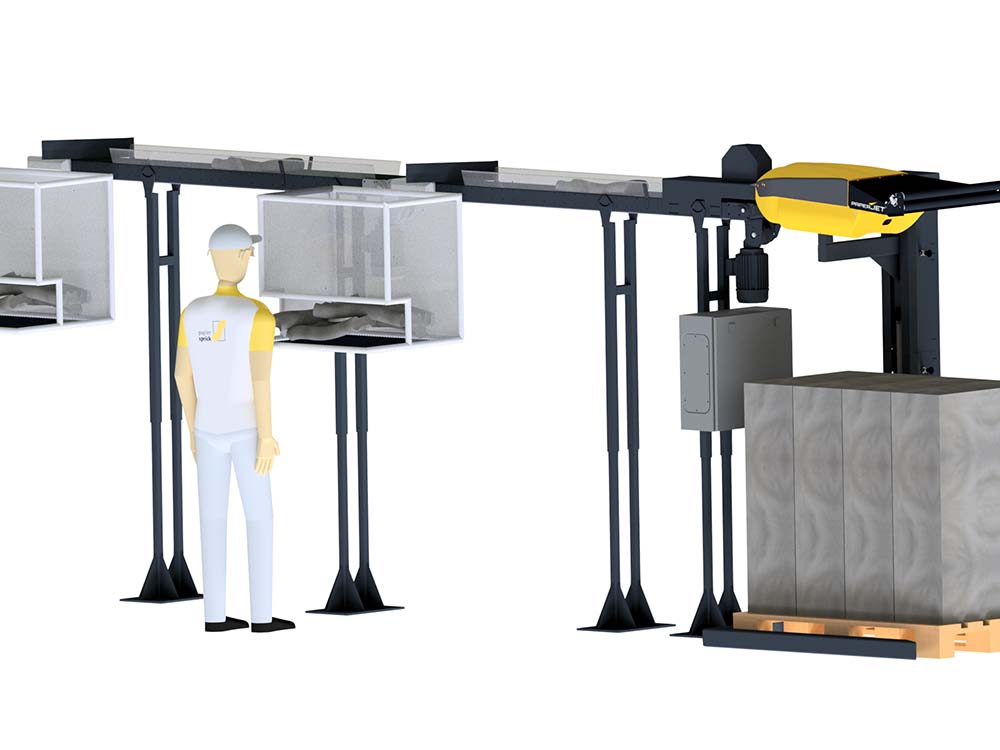

In combination with the PaperJet® paper cushioning system, the PaperBelt transfer system ensures a continuous supply of paper cushions in a predefined length to several packing stations.

Using the PaperBelt conveyor system enables you to exploit the high production speed of the PaperJet® to the maximum, making it possible to supply up to 12 packing stations with only one PaperJet®.

In addition, paper cushions are produced centrally by the PaperJet® and directed to the storage containers provided on the individual packing stations via belt conveyors. The paper cushions are subsequently removed here and can be used to package and protect the shipping goods.

The filling level in the containers is continuously maintained at a defined level using light barriers. This automatically ensures the resupply of paper cushions to all packing stations.

Product features



  • Combinable with PaperJet®
  • Made in Germany



Individual integration solutions available on request

Brochure / Flyer

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

Add-ons and accessories

For direct supply of the SpeedMan® MAX or PaperJet® with ComPackt® paper (continuous pallet)

Environmentally friendly recycled paper as a continuous pallet or in packages

From a simple workbench to individually designed packing tables

Stability and the right paper cushions at all times
